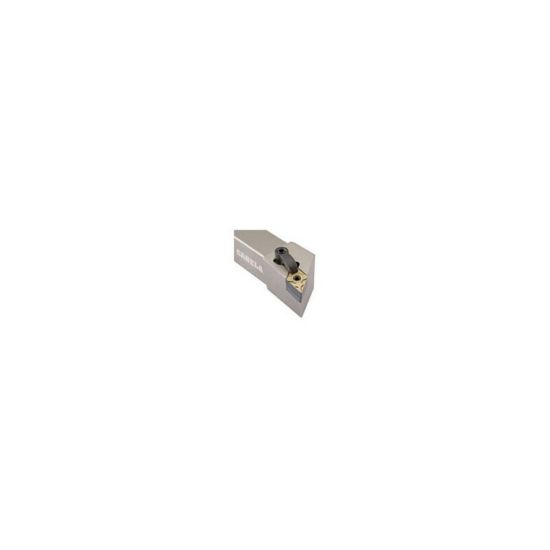

Picture of CANELA Tool MDJNL103B Turning Stick Tool 55.0° 0.625 Shank 4.50 OAL

CANELA Tool MDJNL103B Turning Stick Tool 55.0° 0.625 Shank 4.50 OAL

ANSI: MDJNL103B

ISO: MDJNL103B

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CANELA TOOL
SKU: CANMDJNL103B
Delivery date: 3-5 days
$107.74

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Application Ext.Turning
Shipping State Michigan
Package Size 1
Made In USA No
Dimensional Specifications
Lead Angle 93°
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.6250 15.88MM
Insert Size Ic 11 "33"
Clearance Angle 27.0°
Overall Len 4.5000 114.30MM
Cutting & Machining Properties
Insert Style DN
Insert Shape/Cutter Pocket Shape 55.0°
Inter/Extern External
Fasteners & Connectors
Seat Screw NL-33L
Clamp/Wedge CL-7
Clamp Screw XNS-36
