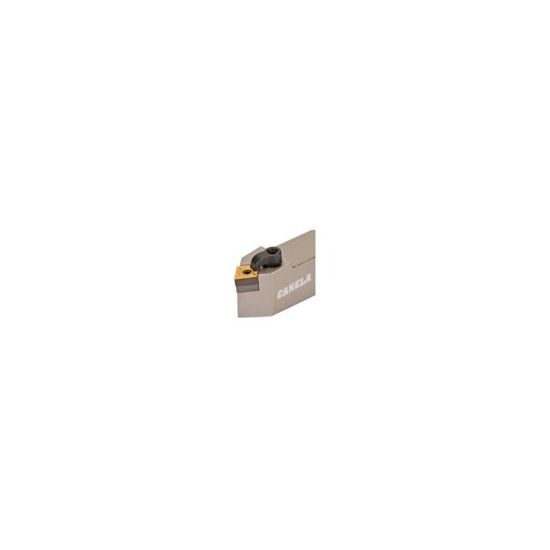

Picture of CANELA Tool MCMNN854D Turning Stick Tool 80.0° 1.250 Shank 6.00 OAL

CANELA Tool MCMNN854D Turning Stick Tool 80.0° 1.250 Shank 6.00 OAL

ANSI: MCMNN854D

ISO: MCMNN854D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CANELA TOOL
SKU: CANMCMNN854D
Delivery date: 3-5 days
$104.66

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Insert/Tool Tool
Application Ext.Turning
Shipping State Michigan
Dimensional Specifications
Machine Side Connection Size 1.2500 31.75MM
Insert Size Ic 12 "43"
Lead Angle 50°
Overall Len 6.0000 152.40MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Seat/Nest ICSN-533
Insert Shape/Cutter Pocket Shape 80.0°
Insert Style CN
Inter/Extern External
Fasteners & Connectors
Clamp Screw XNS-510
Clamp/Wedge CL-12
Seat Screw NL-58
