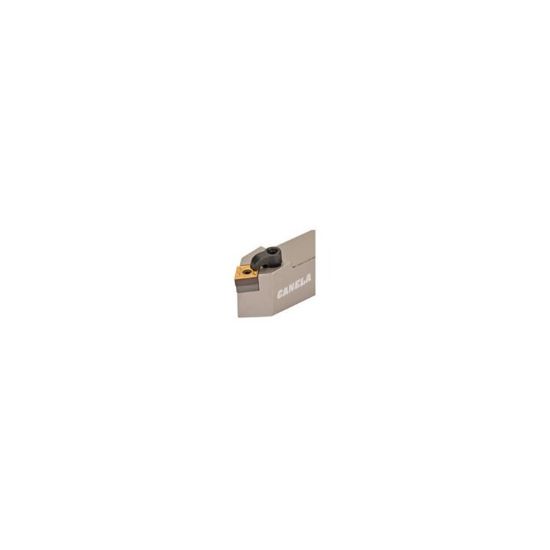

Picture of CANELA Tool MCMNN246D Turning Stick Tool 80.0° 1.000 Shank 6.00 OAL

CANELA Tool MCMNN246D Turning Stick Tool 80.0° 1.000 Shank 6.00 OAL

ANSI: MCMNN246D

ISO: MCMNN246D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CANELA TOOL
SKU: CANMCMNN246D
Delivery date: 3-5 days
$119.23

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Made In USA No
Insert Application General Purpose
Insert Type Negative
Application Ext.Turning
Shipping State Michigan
Package Size 1
Dimensional Specifications
Lead Angle 50°
Overall Len 6.0000 152.40MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.0000 25.40MM
Insert Size Ic 19 "64"
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Insert Style CN
Inter/Extern External
Seat/Nest ICSN-633
Fasteners & Connectors
Seat Screw NL-68
Clamp/Wedge CL-12
Clamp Screw XNS-510
