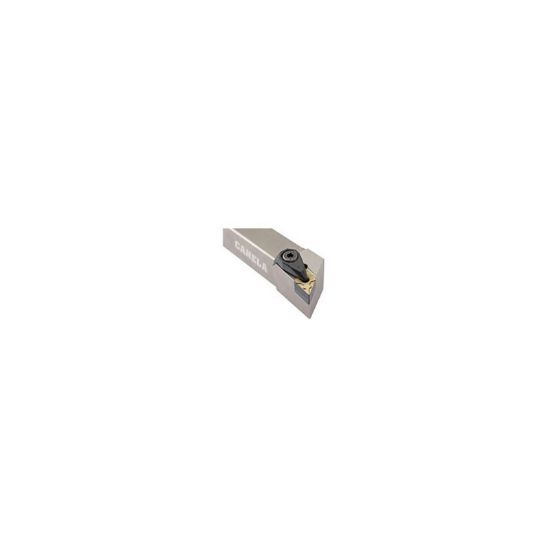

Picture of CANELA Tool DDJNL164DN Turning Stick Tool 55.0° 1.000 Shank 6.00 OAL

CANELA Tool DDJNL164DN Turning Stick Tool 55.0° 1.000 Shank 6.00 OAL

ANSI: DDJNL164DN

ISO: DDJNL164DN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CANELA TOOL
SKU: CANDDJNL164DN
Delivery date: 3-5 days
$122.91

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Application Ext.Turning
Package Size 1
Shipping State Michigan
Insert/Tool Tool
Dimensional Specifications
Lead Angle 93°
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Clearance Angle 27.0°
Insert Size Ic 12 "43"
Overall Len 6.0000 152.40MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Insert Style DN
Seat/Nest IDSN-442
Inter/Extern External
Insert Shape/Cutter Pocket Shape 55.0°
Fasteners & Connectors
Clamp Screw 1696
Clamp/Wedge 2712
Seat Screw 1766
