  • CANELA Tool 735030062 Milling 45.0°, Chamfer Mill, Back Chamfer Milling Cutter 0.62 Diameter Cylindrical Shank0.6250

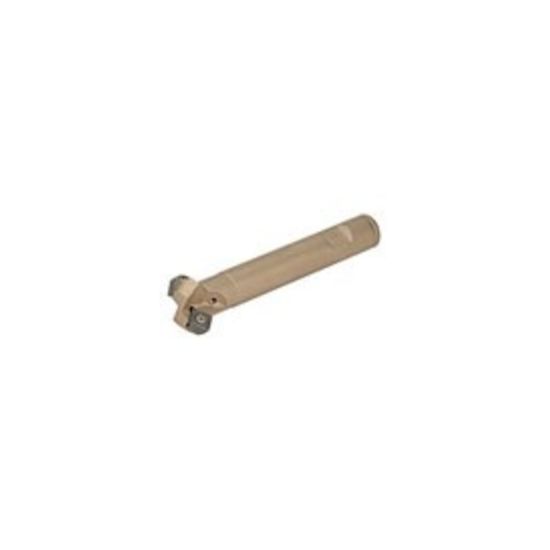

Picture of CANELA Tool 735030062 Milling 45.0°, Chamfer Mill, Back Chamfer Milling Cutter 0.62 Diameter Cylindrical Shank0.6250

CANELA Tool 735030062 Milling 45.0°, Chamfer Mill, Back Chamfer Milling Cutter 0.62 Diameter Cylindrical Shank0.6250

ANSI: 735030062

ISO: 735030062

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CANELA TOOL
SKU: CAN735030062
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

Chamfering milling cutter for diversified manufacture. Recommended for small conventional milling machines and machining centers.

Details

FRONT AND BACK CHAFERING, 4 CORNER INSERT. GREAT COST EFFECTIVE TOOL, INTERCHANGABLE WITH MISUBISHI INSERTS

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Chamfering, Back Chamfering
Shipping State Michigan
Package Size 1
Insert Application Semi Finishing
Made In USA No
Insert Type Positive
Dimensional Specifications
Neck Length 1.0000 25.40MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Insert Size Ic 9
Machine Side Connection Size 0.6250 15.88MM
Machine Side Connection Type Cylindrical
Cutter Dia 0.6250 15.88MM - 5/8
Overall Len 5.0000 127.00MM
Flutes/Inserts 2
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SD
