  • CANELA Tool 5545000100 Milling Button Cutter,End Mill Milling Cutter 1.00 Diameter Cylindrical Shank1.0000

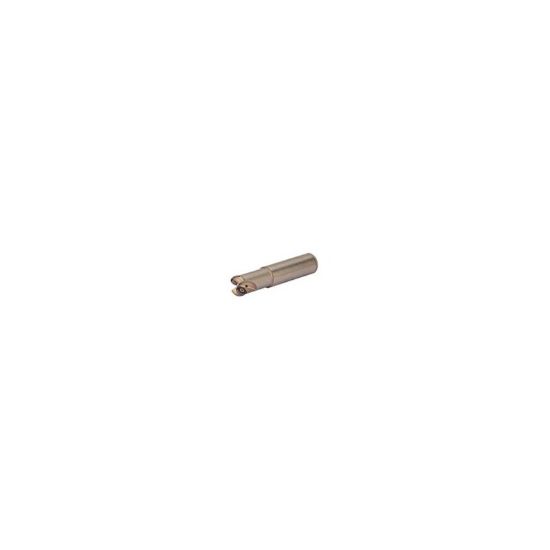

Picture of CANELA Tool 5545000100 Milling Button Cutter,End Mill Milling Cutter 1.00 Diameter Cylindrical Shank1.0000

CANELA Tool 5545000100 Milling Button Cutter,End Mill Milling Cutter 1.00 Diameter Cylindrical Shank1.0000

ANSI: 5545000100

ISO: 5545000100

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CANELA TOOL
SKU: CAN5545000100
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

Round insert cutter for slot milling, peripheral milling, ramp milling and drilling, pocket milling and copy milling. It can be used in only one pass (roughing and finishing) and it is recommended for conventional milling machines and machining centers

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Application Copy Milling, Round Milling
Shipping State Michigan
Package Size 1
Made In USA No
Insert Type Positive
Dimensional Specifications
Neck Length 1.8500 46.99MM
Cutter Dia 1.0000 25.40MM
Tool Material Steel
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Overall Len 5.0000 127.00MM
Insert Size Ic 12
Flutes/Inserts 2
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Insert Style RD
