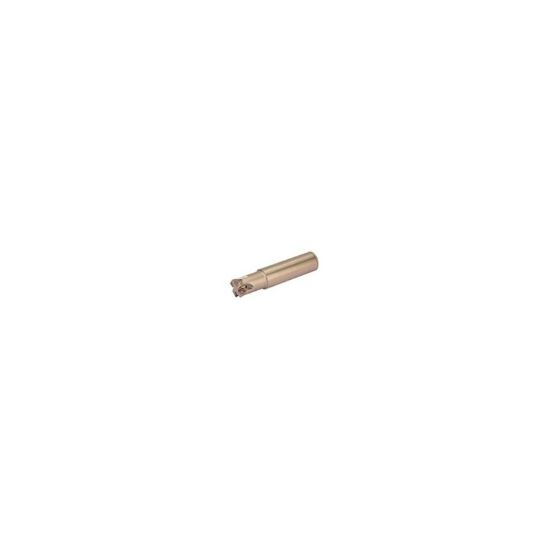

Picture of CANELA Tool 1639030125 Milling Feed Mill Milling Cutter 1.25 Diameter Cylindrical Shank1.2500

CANELA Tool 1639030125 Milling Feed Mill Milling Cutter 1.25 Diameter Cylindrical Shank1.2500

ANSI: 1639030125

ISO: 1639030125

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CANELA TOOL
SKU: CAN1639030125
Delivery date: 3-5 days
$305.64

Features And Benefits

High feed square insert cutter for peripheral milling, ramp milling and drilling, pocket milling and copy milling. It can be used in only one pass (roughing and finishing) and it is recommended for machining centers.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Type Positive
Application Face Milling, Slot Milling, Feed Milling, Ramp Milling, Copy Milling
Shipping State Michigan
Insert/Tool Tool
Insert Application Roughing
Made In USA No
Dimensional Specifications
Flutes/Inserts 4
Insert Size Ic 9
Overall Len 8.0000 203.20MM
Tool Material Steel
Neck Length 1.6930 43.00MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
