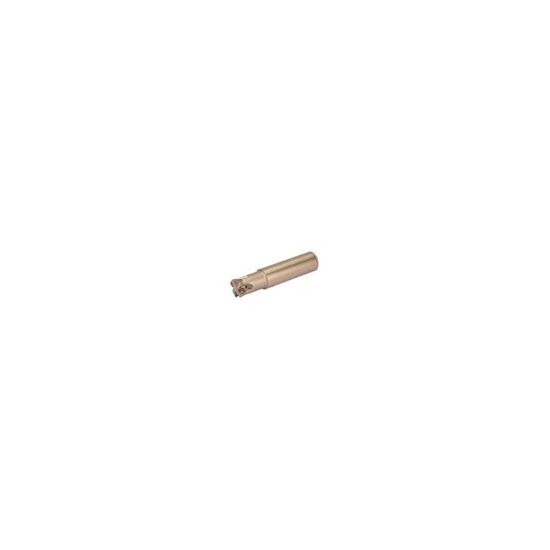

Picture of CANELA Tool 1639030100 Milling Feed Mill Milling Cutter 1.00 Diameter Cylindrical Shank1.0000

CANELA Tool 1639030100 Milling Feed Mill Milling Cutter 1.00 Diameter Cylindrical Shank1.0000

ANSI: 1639030100

ISO: 1639030100

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CANELA TOOL
SKU: CAN1639030100
Delivery date: 3-5 days
$202.71

Features And Benefits

High feed square insert cutter for peripheral milling, ramp milling and drilling, pocket milling and copy milling. It can be used in only one pass (roughing and finishing) and it is recommended for machining centers.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Roughing
Package Size 1
Insert Type Positive
Application Face Milling, Copy Milling, Feed Milling, Ramp Milling, Slot Milling
Shipping State Michigan
Made In USA No
Dimensional Specifications
Tool Material Steel
Flutes/Inserts 2
Overall Len 6.0000 152.40MM
Insert Size Ic 9
Neck Length 1.3780 35.00MM
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutter Dia 1.0000 25.40MM
Cutting & Machining Properties
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
