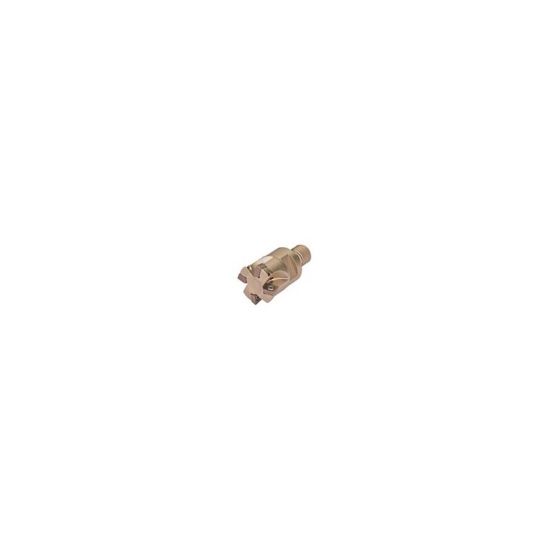

Picture of CANELA Tool 1629060125 Milling Feed Mill Milling Cutter 1.25 Diameter Screw M13

CANELA Tool 1629060125 Milling Feed Mill Milling Cutter 1.25 Diameter Screw M13

ANSI: 1629060125

ISO: 1629060125

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CANELA TOOL
SKU: CAN1629060125
Delivery date: 3-5 days
$341.00

Features And Benefits

High feed square insert cutter for peripheral milling, ramp milling and drilling, pocket milling and copy milling. It can be used in only one pass (roughing and finishing) and it is recommended for machining centers.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Slot Milling, Face Milling, Copy Milling, Feed Milling, Ramp Milling
Insert Application Roughing
Made In USA No
Insert/Tool Tool
Shipping State Michigan
Package Size 1
Dimensional Specifications
Overall Len 1.6930 43.00MM
Insert Size Ic 7
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Screw On
Machine Side Connection Size M13
Tool Material Steel
Flutes/Inserts 5
Cutting & Machining Properties
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
