  • CANELA Tool 1230220150 Milling 90.0°, End Mill Milling Cutter 1.25 Diameter Cylindrical Shank1.2500

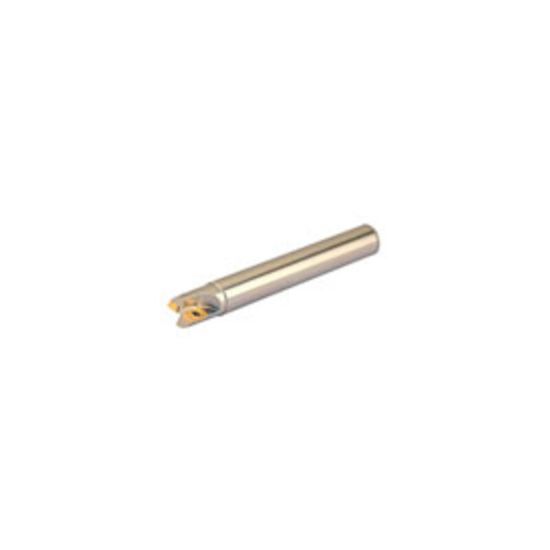

Picture of CANELA Tool 1230220150 Milling 90.0°, End Mill Milling Cutter 1.25 Diameter Cylindrical Shank1.2500

CANELA Tool 1230220150 Milling 90.0°, End Mill Milling Cutter 1.25 Diameter Cylindrical Shank1.2500

ANSI: 1230220150

ISO: 1230220150

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CANELA TOOL
SKU: CAN1230220150
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

Positive milling cutter for diversified manufacture with internal coolant and an exact angle of 90º that uses very strong inserts allowing deep passes and high feed per teeth. Recommended for conventional milling machines and machining centers.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Roughing, Semi Finishing
Insert Type Positive
Application Slot Milling, Ramp Milling, Side Milling, Pocket Milling, Face Milling
Made In USA No
Insert/Tool Tool
Shipping State Michigan
Package Size 1
Dimensional Specifications
Flutes/Inserts 4
Cutter Dia 1.2500 31.75MM - 1-1/4
Neck Length 1.2500 31.75MM
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Insert Size Ic 16
Machine Side Connection Type Cylindrical
Overall Len 10.0000 254.00MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
