  • CANELA Tool 1230220075 Milling 90.0°, End Mill Milling Cutter 0.75 Diameter Cylindrical Shank0.7500

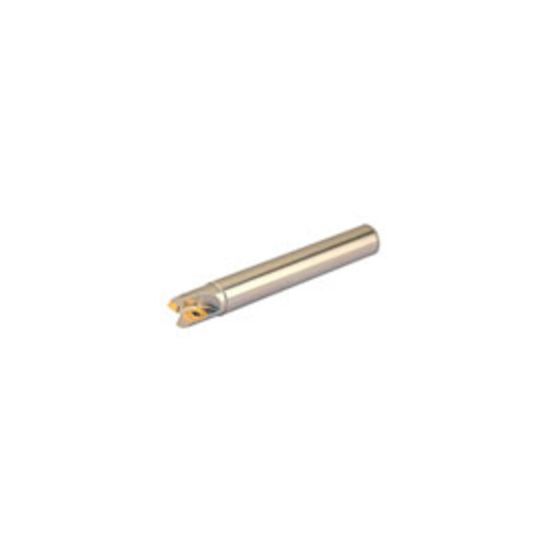

Picture of CANELA Tool 1230220075 Milling 90.0°, End Mill Milling Cutter 0.75 Diameter Cylindrical Shank0.7500

CANELA Tool 1230220075 Milling 90.0°, End Mill Milling Cutter 0.75 Diameter Cylindrical Shank0.7500

ANSI: 1230220075

ISO: 1230220075

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CANELA TOOL
SKU: CAN1230220075
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

Positive milling cutter for diversified manufacture with internal coolant and an exact angle of 90º that uses very strong inserts allowing deep passes and high feed per teeth. Recommended for conventional milling machines and machining centers.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Ramp Milling, Slot Milling, Pocket Milling
Insert/Tool Tool
Insert Application Finishing, Roughing, Semi Finishing
Shipping State Michigan
Package Size 1
Made In USA No
Insert Type Positive
Dimensional Specifications
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 1
Overall Len 8.0000 203.20MM
Neck Length 1.2500 31.75MM
Tool Material Steel
Insert Size Ic 16
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
