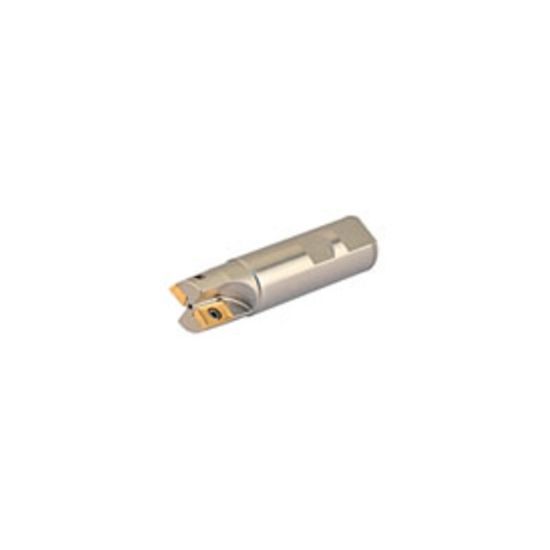

Picture of CANELA Tool 1230210150 Milling 90.0°, Face Mill Cutter 1.50 Diameter Cylindrical Shank1.2500

CANELA Tool 1230210150 Milling 90.0°, Face Mill Cutter 1.50 Diameter Cylindrical Shank1.2500

ANSI: 1230210150

ISO: 1230210150

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CANELA TOOL
SKU: CAN1230210150
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

Positive milling cutter for diversified manufacture with internal coolant and an exact angle of 90º that uses very strong inserts allowing deep passes and high feed per teeth. Recommended for conventional milling machines and machining centers.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Slot Milling, Pocket Milling, Ramp Milling, Side Milling
Shipping State Michigan
Package Size 1
Insert Application Finishing, Semi Finishing, Roughing
Insert Type Positive
Insert/Tool Tool
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Insert Size Ic 16
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 4.0000 101.60MM
Neck Length 1.2500 31.75MM
Flutes/Inserts 4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AP
