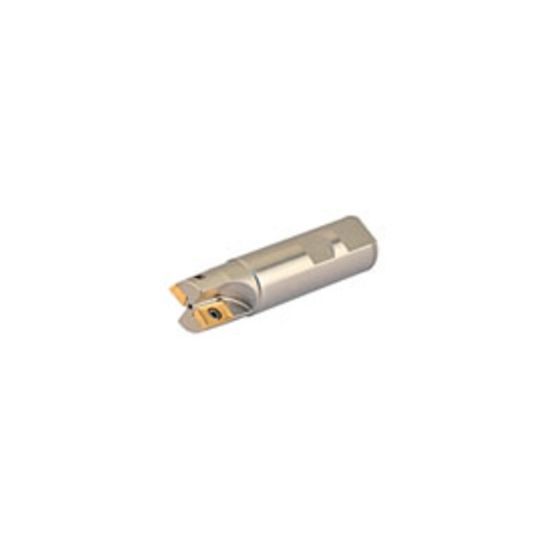

Picture of CANELA Tool 1230210075 Milling 90.0°, Face Mill Cutter 0.75 Diameter Cylindrical Shank0.7500

CANELA Tool 1230210075 Milling 90.0°, Face Mill Cutter 0.75 Diameter Cylindrical Shank0.7500

ANSI: 1230210075

ISO: 1230210075

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CANELA TOOL
SKU: CAN1230210075
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

Positive milling cutter for diversified manufacture with internal coolant and an exact angle of 90º that uses very strong inserts allowing deep passes and high feed per teeth. Recommended for conventional milling machines and machining centers.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Slot Milling, Pocket Milling, Face Milling, Side Milling
Insert Application Roughing, Finishing, Semi Finishing
Made In USA No
Insert Type Positive
Shipping State Michigan
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Neck Length 1.2500 31.75MM
Overall Len 3.5000 88.90MM
Flutes/Inserts 1
Tool Material Steel
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Insert Size Ic 16
Machine Side Connection Type Cylindrical
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
