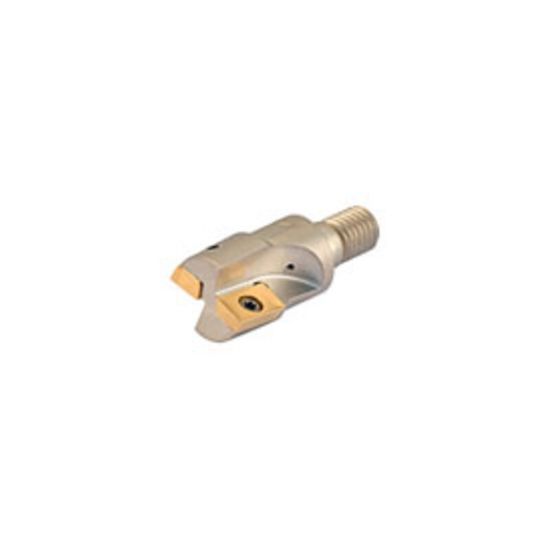

Picture of CANELA Tool 1230060100 Milling 90.0°, Face Mill Cutter 1.00 Diameter Screw M12

CANELA Tool 1230060100 Milling 90.0°, Face Mill Cutter 1.00 Diameter Screw M12

ANSI: 1230060100

ISO: 1230060100

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CANELA TOOL
SKU: CAN1230060100
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

Positive milling cutter for diversified manufacture with internal coolant and an exact angle of 90º that uses very strong inserts allowing deep passes and high feed per teeth. Recommended for conventional milling machines and machining centers.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing, Finishing
Made In USA No
Application Ramp Milling, Side Milling, Face Milling, Slot Milling, Pocket Milling
Package Size 1
Insert Type Positive
Shipping State Michigan
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 16
Machine Side Connection Type Screw On
Machine Side Connection Size M12
Cutter Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Material Steel
Overall Len 1.3780 35.00MM
Cutting & Machining Properties
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
