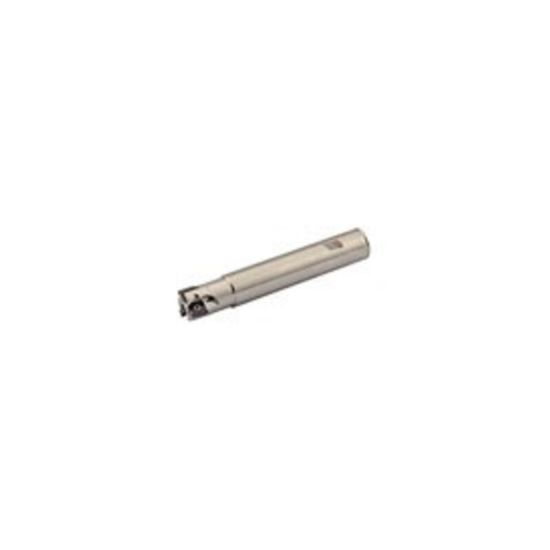

Picture of CANELA Tool 1222370075 Milling 90.0°, Face Mill Cutter 0.75 Diameter Cylindrical Shank0.7500

CANELA Tool 1222370075 Milling 90.0°, Face Mill Cutter 0.75 Diameter Cylindrical Shank0.7500

ANSI: 1222370075

ISO: 1222370075

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CANELA TOOL
SKU: CAN1222370075
Delivery date: 3-5 days
$146.14

Features And Benefits

Positive milling cutter for diversified manufacture with an exact angle of 90º that uses very strong inserts allowing deep passes and high feed per teeth. Recommended for conventional milling machines and machining centers

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Application Face Milling, Slot Milling, Side Milling
Shipping State Michigan
Insert Type Negative
Made In USA No
Package Size 1
Dimensional Specifications
Neck Length 1.2500 31.75MM
Overall Len 3.5000 88.90MM
Machine Side Connection Type Cylindrical
Tool Material Steel
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Insert Size Ic 10
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style LN
