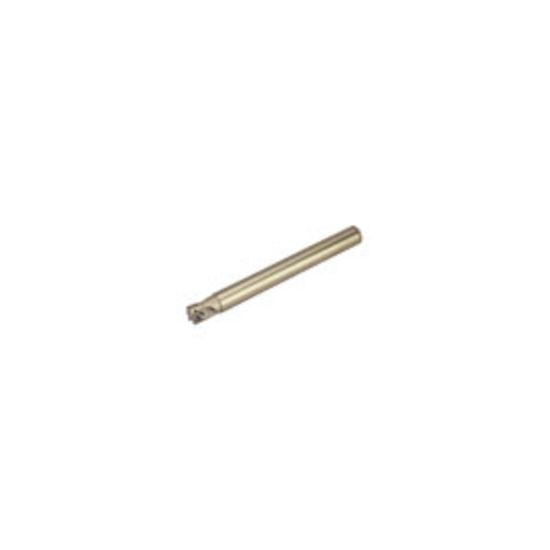

Picture of CANELA Tool 1220220150 Milling 90.0°, Face Mill Cutter 1.50 Diameter Cylindrical Shank1.2500

CANELA Tool 1220220150 Milling 90.0°, Face Mill Cutter 1.50 Diameter Cylindrical Shank1.2500

ANSI: 1220220150

ISO: 1220220150

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CANELA TOOL
SKU: CAN1220220150
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

Positive milling cutter for diversified manufacture with an exact angle of 90º that uses very strong inserts allowing deep passes and high feed per teeth. Recommended for conventional milling machines and machining centers

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Finishing, Roughing
Application Ramp Milling, Side Milling, Face Milling, Pocket Milling, Slot Milling
Shipping State Michigan
Package Size 1
Insert/Tool Tool
Insert Type Positive
Made In USA No
Dimensional Specifications
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Cylindrical
Overall Len 10.0000 254.00MM
Flutes/Inserts 6
Insert Size Ic 10
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Neck Length 1.2500 31.75MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AP
