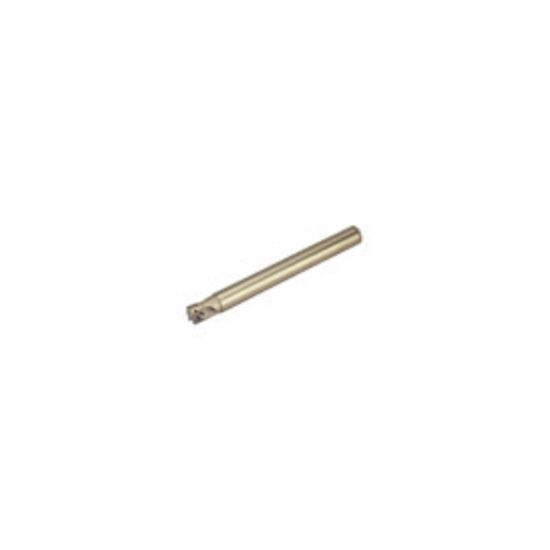

Picture of CANELA Tool 1220220100 Milling 90.0°, Face Mill Cutter 1.00 Diameter Cylindrical Shank1.0000

CANELA Tool 1220220100 Milling 90.0°, Face Mill Cutter 1.00 Diameter Cylindrical Shank1.0000

ANSI: 1220220100

ISO: 1220220100

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CANELA TOOL
SKU: CAN1220220100
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

Positive milling cutter for diversified manufacture with an exact angle of 90º that uses very strong inserts allowing deep passes and high feed per teeth. Recommended for conventional milling machines and machining centers

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Ramp Milling, Slot Milling, Face Milling, Side Milling
Made In USA No
Insert/Tool Tool
Insert Application Finishing, Semi Finishing, Roughing
Insert Type Positive
Shipping State Michigan
Package Size 1
Dimensional Specifications
Cutter Dia 1.0000 25.40MM
Neck Length 1.2500 31.75MM
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 10
Tool Material Steel
Overall Len 8.0000 203.20MM
Flutes/Inserts 4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AP
