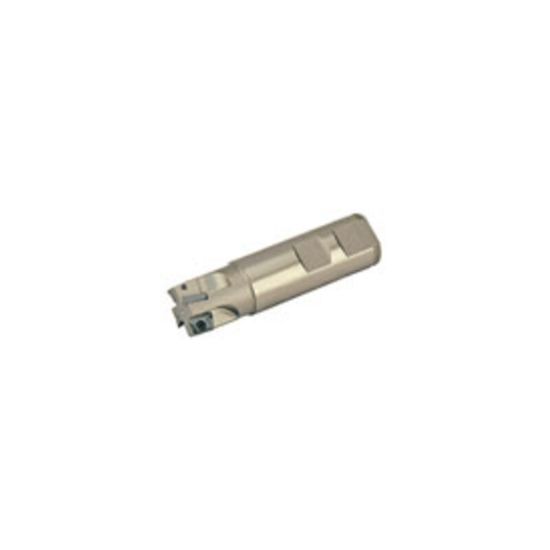

Picture of CANELA Tool 1220210062 Milling 90.0°, Face Mill Cutter 0.62 Diameter Cylindrical Shank0.6250

CANELA Tool 1220210062 Milling 90.0°, Face Mill Cutter 0.62 Diameter Cylindrical Shank0.6250

ANSI: 1220210062

ISO: 1220210062

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CANELA TOOL
SKU: CAN1220210062
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

Positive milling cutter for diversified manufacture with an exact angle of 90º that uses very strong inserts allowing deep passes and high feed per teeth. Recommended for conventional milling machines and machining centers

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Finishing, Semi Finishing
Made In USA No
Insert Type Positive
Application Face Milling, Slot Milling, Ramp Milling, Side Milling, Pocket Milling
Shipping State Michigan
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Size 0.6250 15.88MM
Overall Len 3.2500 82.55MM
Cutter Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Insert Size Ic 10
Neck Length 1.0000 25.40MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Machine Side Connection Type Cylindrical
Tool Material Steel
Cutting & Machining Properties
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
