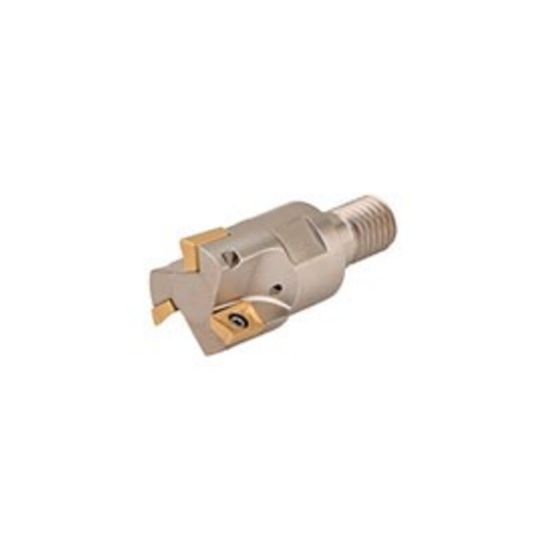

CANELA Tool 1220060100 Milling 90.0°, Face Mill Cutter 1.00 Diameter Screw M12

ANSI: 1220060100

ISO: 1220060100

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CANELA TOOL
SKU: CAN1220060100
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

Positive milling cutter for diversified manufacture with an exact angle of 90º that uses very strong inserts allowing deep passes and high feed per teeth. Recommended for conventional milling machines and machining centers

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing, Finishing
Package Size 1
Application Side Milling, Ramp Milling, Slot Milling, Face Milling, Pocket Milling
Made In USA No
Insert Type Positive
Shipping State Michigan
Insert/Tool Tool
Dimensional Specifications
Flutes/Inserts 3
Machine Side Connection Type Screw On
Machine Side Connection Size M12
Cutter Dia 1.0000 25.40MM
Insert Size Ic 10
Tool Material Steel
Overall Len 1.3780 35.00MM
Cutting & Machining Properties
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
