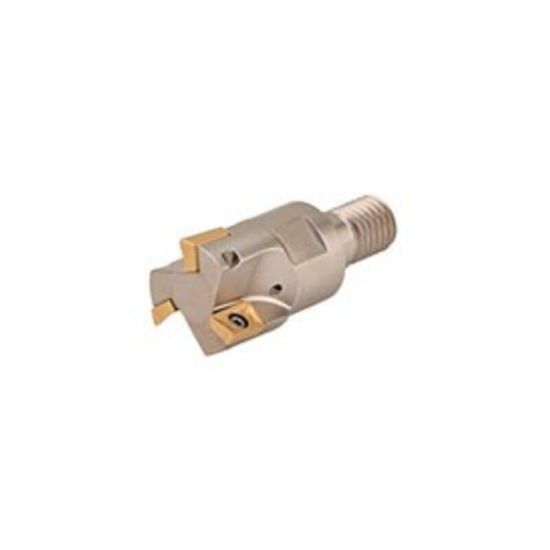

Picture of CANELA Tool 1220060075 Milling 90.0°, Face Mill Cutter 0.75 Diameter Screw M10

CANELA Tool 1220060075 Milling 90.0°, Face Mill Cutter 0.75 Diameter Screw M10

ANSI: 1220060075

ISO: 1220060075

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CANELA TOOL
SKU: CAN1220060075
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

Positive milling cutter for diversified manufacture with an exact angle of 90º that uses very strong inserts allowing deep passes and high feed per teeth. Recommended for conventional milling machines and machining centers

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Pocket Milling, Ramp Milling, Slot Milling
Insert Application Semi Finishing, Finishing, Roughing
Shipping State Michigan
Package Size 1
Insert/Tool Tool
Made In USA No
Insert Type Positive
Dimensional Specifications
Machine Side Connection Size M10
Insert Size Ic 10
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Type Screw On
Flutes/Inserts 3
Tool Material Steel
Overall Len 1.1810 30.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AP
