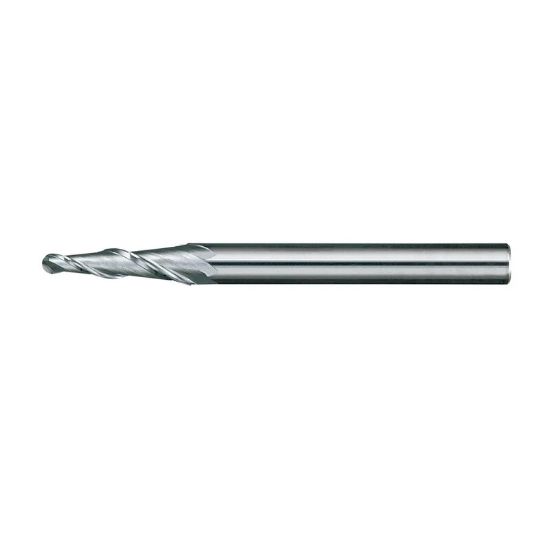

AWARD BW-504TIN DIA 5/16 SH 0.7500 LOC 1.00 OAL 3.2500 End Mill Taper Flute HSS TiN Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AWARD
SKU: AWABW-504TIN
Delivery date: 3-5 days
$110.81

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Profile Milling, Taper Side Milling, Copy Milling, Face Milling
Coating TiN
Shipping State Michigan
Package Size 1
Made In USA Yes
Dimensional Specifications
Taper Angle 20.0°
Tool Material High Speed Steel
Flutes/Inserts 4
Length Type Standard
Overall Len 3.2500 82.55MM
Cut Dia Max 1.0404 26.43MM
Machine Side Connection Type Cylindrical
Length Of Cut 1.0000 25.40MM
Inch/Metric Inch
Dimension Description 0.313 x 0.750 x 1.000 x 3.250
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Single/Double End Single End
Helix Angle 30°
Cutter Style Taper Flute Ball Finisher
Cut Rating <40HRC Steel, Aluminum, Ductile Iron, Gray Iron
Cutter Dia 0.3125 7.94MM - 5/16
Machine Side Connection Size 0.7500 19.05MM
End Of Tool Shape Ball Nose
Taper Flute Yes
Cutting & Machining Properties
Center Cutting No
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
