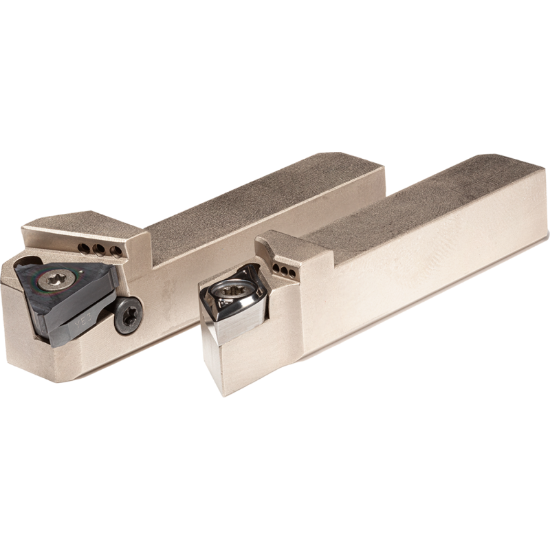

Picture of ARNO ROUSE SDJCR 1616 E11-IK-AFC Stick Tool 55.0° Swiss 0.629 Shank Right Hand

ARNO ROUSE SDJCR 1616 E11-IK-AFC Stick Tool 55.0° Swiss 0.629 Shank Right Hand

ANSI: SDJCR 1616 E11-IK-AFC

ISO: SDJCR 1616 E11-IK-AFC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ARNO ROUSE
SKU: ARN116156
Delivery date: 3-5 days
$356.00
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Shipping State Illinois
Application Swiss, Ext.Turning
Made In USA No
Insert Type Positive
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Clearance Angle 27.0°
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Lead Angle 93°
Insert Size Ic 11 "32"
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Cool Sply Type Through
Hand R/L Right
Inter/Extern External
Insert Style DC
Coolant Thru Yes
