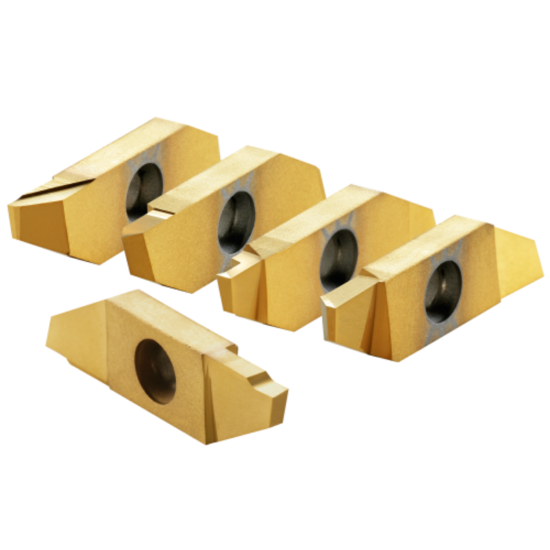

ARNO ROUSE LST 083065-02FR-P AK1010 Grooving,Groove Turning Insert 0.118 Wide 0.007 Corner Radius

ANSI: LST 083065-02FR-P AK1010

ISO: LST 083065-02FR-P AK1010

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ARNO ROUSE
SKU: ARN110017
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Details

ARNO LST 083065-02FR-P AK1010 Groove / Turn

Grade and Coating Description

Grade for finish and light medium machining of hard to machine materials, high temperature resistant nickel and titanium alloys as well as exotic materials. Grade can also be used for finish turning of stainless steel.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 10
Insert Application General Purpose
Application Swiss, Grooving & Parting Insert
Made In USA No
Insert/Tool Insert
Grade AK1010
Shipping State Illinois
Insert Type Positive
Dimensional Specifications
Insert Size Ic 8
Length Of Cut 0.2560 6.50MM
Cutting Width 0.1180 3.00MM
Cut Rating High Temp, Stainless Steel, Titanium
Tool Over Hang 0.1570
Corner Radius 0.0078 0.20MM
Depth Of Cut Max 0.2560
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style LS,LV,LR,LG
Cutting Edge Mat Carbide
Hand R/L Right
