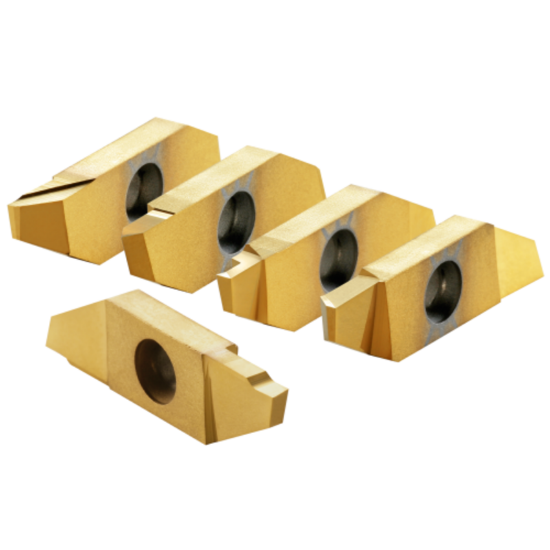

ARNO ROUSE LST 082560FR-P AP4020 Grooving,Groove Turning Insert 0.098 Wide TiCN

ANSI: LST 082560FR-P AP4020

ISO: LST 082560FR-P AP4020

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ARNO ROUSE
SKU: ARN78904
Delivery date: 3-5 days
$36.87

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Details

ARNO LST 082560FR-P AP4020 Groove / Turn

Grade and Coating Description

Primarily for stainless steel.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert Application General Purpose
Application Swiss, Grooving & Parting Insert
Grade AP4020
Made In USA No
Coating TiCN
Package Size 10
Shipping State Illinois
Insert/Tool Insert
Dimensional Specifications
Tool Over Hang 0.2560
Insert Size Ic 8
Cut Rating <40HRC Steel, Stainless Steel
Cutting Width 0.0980 2.49MM
Depth Of Cut Max 0.2360
Length Of Cut 0.2360 5.99MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Hand R/L Right
Insert Shape/Cutter Pocket Shape Other
Insert Style LS,LV,LR,LG
