ADVENT Tool M60.7514-1CSF3BH Carbide Thread Mill 0.75MM Metric 0.169 Cutter Diameter Cylindrical 0.2500 Shank

ISO: M60.7514-1CSF3BH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ADVENT TOOL
SKU: ADV20199
Delivery date: 3-5 days
$127.01

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Thread Milling
Shipping State Illinois
Package Size 1
Made In USA Yes

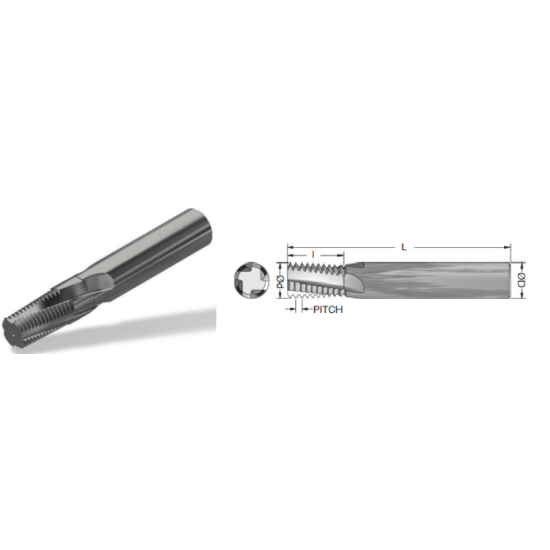

Dimensional Specifications
Thread Pitch 0.75MM
Length Of Cut 0.4130 10.49MM
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Thread Size M6
Thread Type Metric
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Cutter Dia 0.1690 4.29MM
Cut Rating <53Hrc Steel,Aluminum,Ductile Iron,Gray Iron,High Temp,Stainless Steel
Overall Len 3.0000 76.20MM
Helix Angle 28°
Cutter Style Carbide Thread Mill
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Medical Yes
Aerospace Yes
Mold Yes
Agricultural YES
Energy Yes
