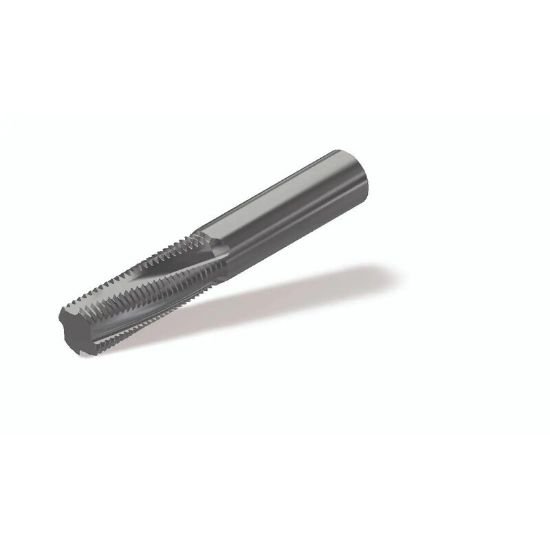

Picture of Advent Tool M142.012-1CSV Carbide Thread Mill 2.00mm Metric 0.429 Cutter Diameter Cylindrical 0.5000 Shank AlTiN

Advent Tool M142.012-1CSV Carbide Thread Mill 2.00mm Metric 0.429 Cutter Diameter Cylindrical 0.5000 Shank AlTiN

Part Number: ADV21378 ISO: M142.012-1CSV

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ADVENT TOOL
SKU: 1291204
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
ADVENT TOOL M142.012-1CSV Carbide Thread Mill Straight M14 2.00MM METRIC AlTiN Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA YES
Cutter Type Mill Thread
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <53HRC Steel, Aluminum, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.5000 12.70MM
Overall Length 4.0000 101.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Tool Dia 0.4291 10.90MM
Type Of Tool Thread Mill
Length Of Cut 1.0000 25.40MM
Cutter Style Carbide Thread Mill
Helix Angle 0
Thread Pitch 2.00MM
Thread Type METRIC
Thread Size M14
