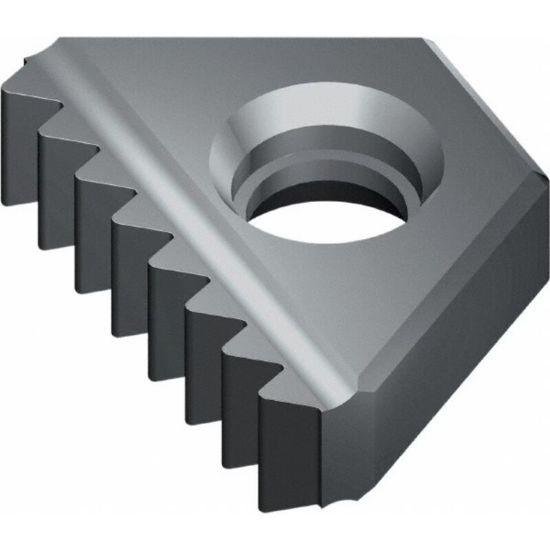

ADVENT Tool ATM-410A14C Indexable Thread Mill Int / Ext 14.00TPI Pitch Carbide TiN Coating

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ADVENT TOOL
SKU: ADV50456
Delivery date: 3-5 days
$45.11

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Insert/Tool Insert
Application Thread Milling
Shipping State Illinois
Package Size 2
Insert Application Finishing
Coating TiN Coating
Made In USA Yes
Dimensional Specifications
Cut Rating <40HRC, Stainless, Iron, High Temp
Length Of Cut 1.5000 38.10MM
Thread Pitch 14.00TPI
Cutting & Machining Properties
Inter/Extern Int / Ext
Insert Shape/Cutter Pocket Shape Thread Form
Cutting Edge Mat Carbide
Industry-Specific Applications
Automotive Yes
Medical Yes
Energy Yes
Aerospace Yes
Job Shop Yes
