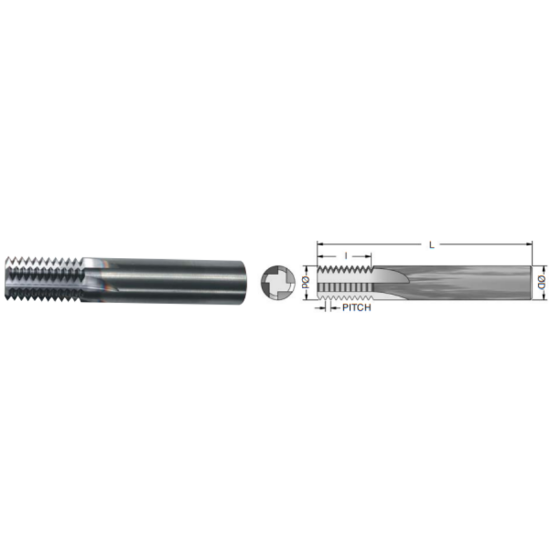

ADVENT Tool 581612-1CS Carbide Thread Mill 16.00TPI UN 0.495 Cutter Diameter Cylindrical 0.5000 Shank

ISO: 581612-1CS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ADVENT TOOL
SKU: ADV21060
Delivery date: 3-5 days
$223.78

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Thread Milling
Shipping State Illinois
Package Size 1
Dimensional Specifications
Thread Size 5/8"
Cut Rating <53Hrc Steel,Aluminum,Ductile Iron,Gray Iron,High Temp,Stainless Steel
Overall Len 4.0000 101.60MM
Thread Type UN
Helix Angle
Cutter Style Carbide Thread Mill
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Thread Pitch 16.00TPI
Cutter Dia 0.4950 12.57MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 1.0000 25.40MM
Machine Side Connection Size 0.5000 12.70MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Medical Yes
Automotive Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
