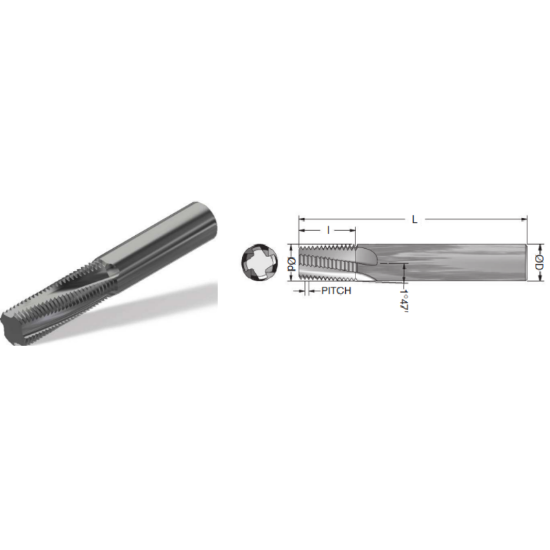

ADVENT Tool 141938-1CSBSPF3H Carbide Thread Mill 19.00TPI BSPP 0.370 Cutter Diameter Cylindrical 0.3750 Shank

ISO: 141938-1CSBSPF3H

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ADVENT TOOL
SKU: ADV20543
Delivery date: 3-5 days
$163.30

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Thread Milling
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cutter Dia 0.3700 9.40MM
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Overall Len 3.0000 76.20MM
Length Of Cut 0.7890 20.04MM
Machine Side Connection Size 0.3750 9.53MM
Cutter Style Carbide Thread Mill
Thread Pitch 19.00TPI
Thread Type BSPP
Thread Size 1/4"
Cut Rating <53Hrc Steel,Aluminum,Ductile Iron,Gray Iron,High Temp,Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Helix Angle 28°
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
