  • AB ToolS Shell Arbor 275 Parallelogram 90.0°, Face Mill Shell Arbor 0.7500 Positive 2.7500 69.85MM - 2-3/4 Cutter Dia

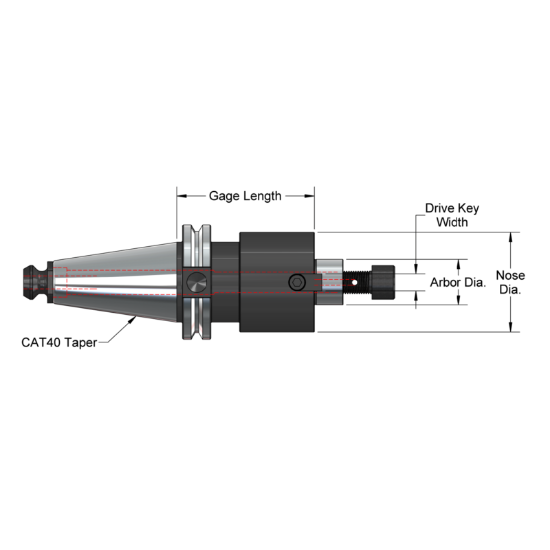

Picture of AB ToolS Shell Arbor 275 Parallelogram 90.0°, Face Mill Shell Arbor 0.7500 Positive 2.7500 69.85MM - 2-3/4 Cutter Dia

AB ToolS Shell Arbor 275 Parallelogram 90.0°, Face Mill Shell Arbor 0.7500 Positive 2.7500 69.85MM - 2-3/4 Cutter Dia

ANSI: SHELL 275

ISO: SHELL 275

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: ABTSHELL 275
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

Shell Shear-Hogs

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Side Milling, Ramp Milling, Slot Milling, Face Milling, Pocket Milling
Made In USA Yes
Insert/Tool Tool
Insert Type Positive
Package Size 1
Shipping State California
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Insert Size Ic 43
Depth Of Cut Max 0.3750
Cutter Dia 2.7500 69.85MM - 2-3/4
Flutes/Inserts 4
Overall Len 1.5000 38.10MM
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AD
Extractor T8
Fasteners & Connectors
Insert Screw 3.5MM SHC
