  • AB ToolS SH200-1 Parallelogram 90.0°, Face Mill End Mill Cylindrical 1.0000 Positive 2.0000 50.80MM Cutter Dia

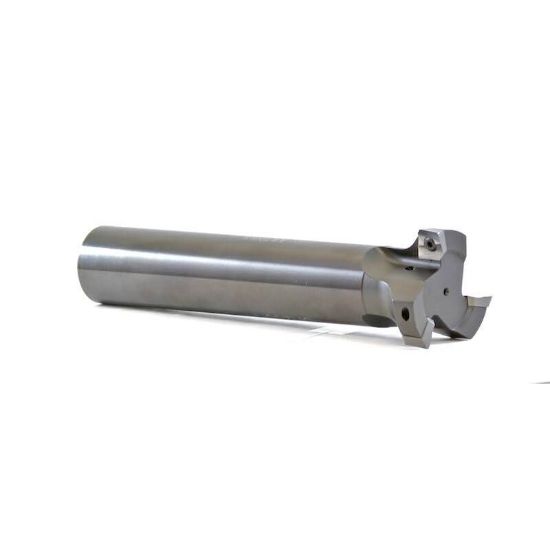

Picture of AB ToolS SH200-1 Parallelogram 90.0°, Face Mill End Mill Cylindrical 1.0000 Positive 2.0000 50.80MM Cutter Dia

AB ToolS SH200-1 Parallelogram 90.0°, Face Mill End Mill Cylindrical 1.0000 Positive 2.0000 50.80MM Cutter Dia

ANSI: SH200-1

ISO: SH200-1

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: ABTSH200-1
Delivery date: 3-5 days
$375.00

Features And Benefits

Multi Flute Shear-Hog The Shear-Hogs have no set-screw flats for possible shrink fit use or balancing. We will mill flats per request at no charge.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Side Milling, Face Milling, Ramp Milling, Slot Milling
Shipping State California
Insert Application Semi Finishing, Roughing
Made In USA Yes
Insert Type Positive
Package Size 1
Dimensional Specifications
Tool Material Steel
Overall Len 5.0000 127.00MM
Cutter Dia 2.0000 50.80MM
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Insert Size Ic 43
Depth Of Cut Max 0.3750
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 3
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Extractor T8
Insert Style AD
Fasteners & Connectors
Insert Screw 3.5MM SHC
