  • AB ToolS SH150 Parallelogram 90.0°, Face Mill End Mill Cylindrical 0.7500 Positive 1.5000 38.10MM - 1-1/2 Cutter Dia

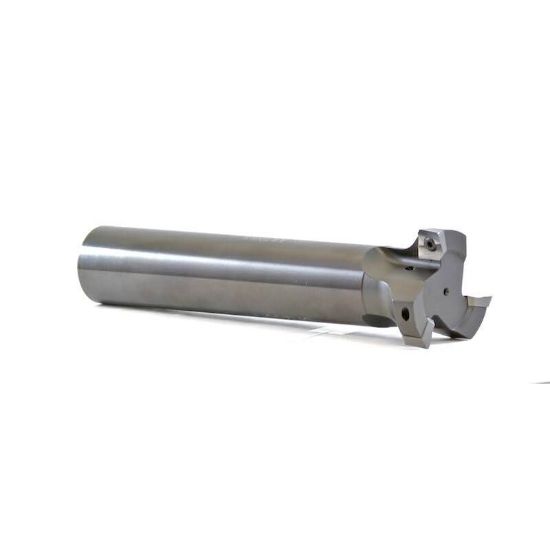

Picture of AB ToolS SH150 Parallelogram 90.0°, Face Mill End Mill Cylindrical 0.7500 Positive 1.5000 38.10MM - 1-1/2 Cutter Dia

AB ToolS SH150 Parallelogram 90.0°, Face Mill End Mill Cylindrical 0.7500 Positive 1.5000 38.10MM - 1-1/2 Cutter Dia

ANSI: SH150

ISO: SH150

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: ABTSH150
Delivery date: 3-5 days
$315.00

Features And Benefits

Multi Flute Shear-Hog The Shear-Hogs have no set-screw flats for possible shrink fit use or balancing. We will mill flats per request at no charge.

Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Slot Milling, Side Milling, Face Milling, Pocket Milling
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Made In USA Yes
Insert Type Positive
Package Size 1
Shipping State California
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 4.0000 101.60MM
Insert Size Ic 43
Depth Of Cut Max 0.3750
Flutes/Inserts 2
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Insert Style AD
Insert Shape/Cutter Pocket Shape Parallelogram
Extractor T8
Fasteners & Connectors
Insert Screw 3.5MM SHC
