  • AB ToolS SH125-9 Parallelogram 90.0°, Face Mill End Mill Cylindrical 1.0000 Positive 1.2500 31.75MM - 1-1/4 Cutter Dia

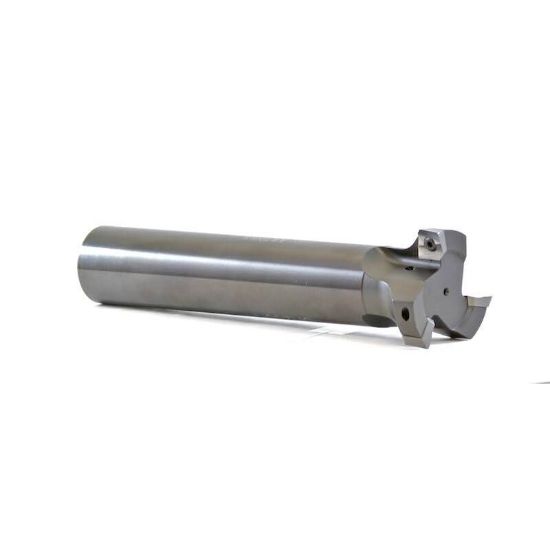

Picture of AB ToolS SH125-9 Parallelogram 90.0°, Face Mill End Mill Cylindrical 1.0000 Positive 1.2500 31.75MM - 1-1/4 Cutter Dia

AB ToolS SH125-9 Parallelogram 90.0°, Face Mill End Mill Cylindrical 1.0000 Positive 1.2500 31.75MM - 1-1/4 Cutter Dia

ANSI: SH125-9

ISO: SH125-9

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: ABTSH125-9
Delivery date: 3-5 days
$480.00

Features And Benefits

Multi Flute Shear-Hog The Shear-Hogs have no set-screw flats for possible shrink fit use or balancing. We will mill flats per request at no charge.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Ramp Milling, Slot Milling, Pocket Milling, Face Milling
Made In USA Yes
Insert/Tool Tool
Insert Type Positive
Insert Application Roughing, Semi Finishing
Shipping State California
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 43
Depth Of Cut Max 0.3750
Overall Len 9.0000 228.60MM
Flutes/Inserts 2
Tool Material Steel
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Cutting & Machining Properties
Extractor T8
Insert Style AD
Insert Shape/Cutter Pocket Shape Parallelogram
Fasteners & Connectors
Insert Screw 3.5MM SHC
