  • AB ToolS SH125-1 Parallelogram 90.0°, Face Mill End Mill Cylindrical 1.0000 Positive 1.2500 31.75MM - 1-1/4 Cutter Dia

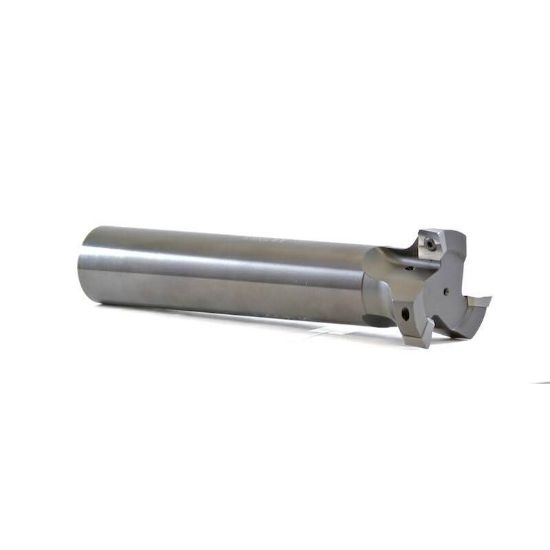

Picture of AB ToolS SH125-1 Parallelogram 90.0°, Face Mill End Mill Cylindrical 1.0000 Positive 1.2500 31.75MM - 1-1/4 Cutter Dia

AB ToolS SH125-1 Parallelogram 90.0°, Face Mill End Mill Cylindrical 1.0000 Positive 1.2500 31.75MM - 1-1/4 Cutter Dia

ANSI: SH125-1

ISO: SH125-1

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: ABTSH125-1
Delivery date: 3-5 days
$285.00

Features And Benefits

Multi Flute Shear-Hog The Shear-Hogs have no set-screw flats for possible shrink fit use or balancing. We will mill flats per request at no charge.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Face Milling, Slot Milling, Ramp Milling, Side Milling
Insert Type Positive
Insert Application Semi Finishing, Roughing
Made In USA Yes
Package Size 1
Shipping State California
Dimensional Specifications
Tool Material Steel
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 4.0000 101.60MM
Insert Size Ic 43
Depth Of Cut Max 0.3750
Flutes/Inserts 2
Cutting & Machining Properties
Extractor T8
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AD
Fasteners & Connectors
Insert Screw 3.5MM SHC
