  • AB ToolS SD-100T2 Triangle 100.0°, Chamfer Mill Spot Drill Weldon 0.5000 Positive 0.6100 15.49MM Cut Dia Max

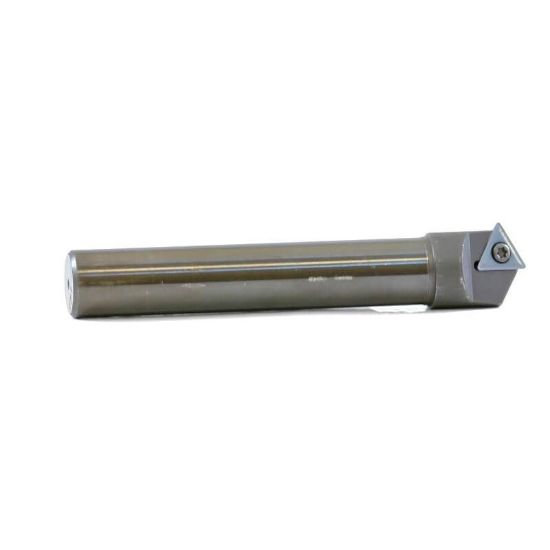

Picture of AB ToolS SD-100T2 Triangle 100.0°, Chamfer Mill Spot Drill Weldon 0.5000 Positive 0.6100 15.49MM Cut Dia Max

AB ToolS SD-100T2 Triangle 100.0°, Chamfer Mill Spot Drill Weldon 0.5000 Positive 0.6100 15.49MM Cut Dia Max

ANSI: SD-100T2

ISO: SD-100T2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: ABTSD-100T2
Delivery date: 3-5 days
$200.00

Features And Benefits

These all use Industry Standard inserts with secondary clearance facets ground to avoid dragging on the small cut diameters.*

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Chamfering
Insert Type Positive
Insert Application General Purpose
Shipping State California
Made In USA Yes
Package Size 1
Dimensional Specifications
Cut Dia Max 0.6100 15.49MM
Overall Len 3.5000 88.90MM
Depth Of Cut Max 0.2400
Tool Material Steel
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 1
Machine Side Connection Size 0.5000 12.70MM
Length Of Cut 0.2400 6.10MM
Insert Size Ic 21
Machine Side Connection Type Weldon
Cutting & Machining Properties
Insert Style TP
Insert Shape/Cutter Pocket Shape Triangle
Fasteners & Connectors
Insert Screw 4-40
