  • AB ToolS DXWL90-2.25 Parallelogram 90.0°, Dovetail End Mill Weldon 1.0000 Positive 2.2500 57.15MM - 2-1/4 Cutter Dia

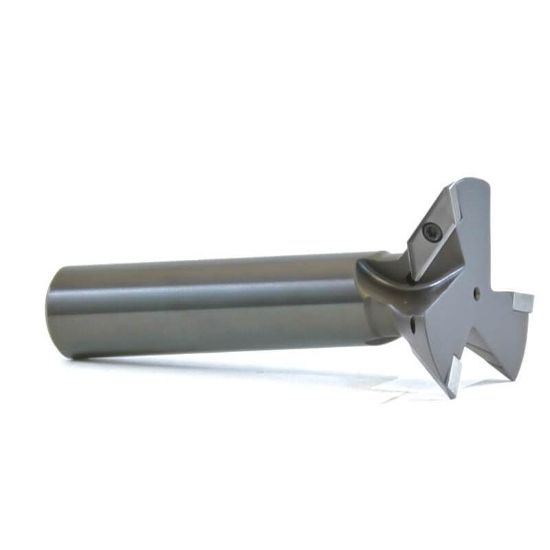

Picture of AB ToolS DXWL90-2.25 Parallelogram 90.0°, Dovetail End Mill Weldon 1.0000 Positive 2.2500 57.15MM - 2-1/4 Cutter Dia

AB ToolS DXWL90-2.25 Parallelogram 90.0°, Dovetail End Mill Weldon 1.0000 Positive 2.2500 57.15MM - 2-1/4 Cutter Dia

ANSI: DXWL90-2.25

ISO: DXWL90-2.25

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: ABTDXWL90-2.25
Delivery date: 3-5 days
$470.00

Features And Benefits

We use all these cutters in production milling 38HRc 4340 AT 1100rpm to 1800rpm and .001 to .002 IPT ALL INCLUDED ANGLES

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Dovetail Milling
Insert Application Finishing, Semi Finishing
Insert Type Positive
Shipping State California
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Overall Len 4.0000 101.60MM
Flutes/Inserts 3
Depth Of Cut Max 0.4900
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Tool Material Steel
Cutter Dia 2.2500 57.15MM - 2-1/4
Insert Size Ic 90
Machine Side Connection Type Weldon
Cutting & Machining Properties
Insert Style DI
Extractor T8
Insert Shape/Cutter Pocket Shape Parallelogram
Fasteners & Connectors
Insert Screw DX-3M
