  • AB ToolS DXL90-2.0 Parallelogram 90.0°, Dovetail End Mill Weldon 0.7500 Positive 2.0000 50.80MM Cutter Dia

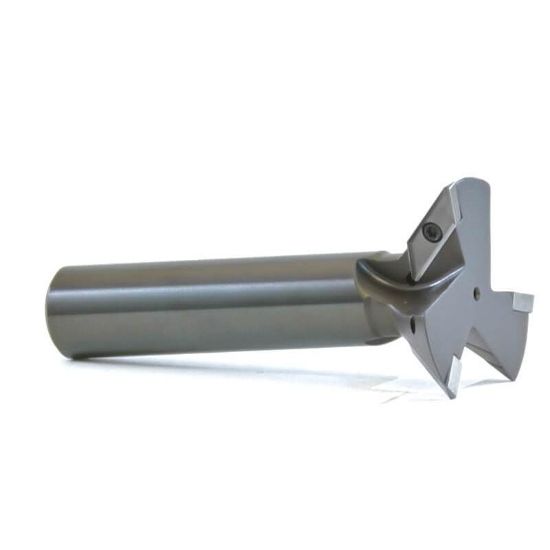

Picture of AB ToolS DXL90-2.0 Parallelogram 90.0°, Dovetail End Mill Weldon 0.7500 Positive 2.0000 50.80MM Cutter Dia

AB ToolS DXL90-2.0 Parallelogram 90.0°, Dovetail End Mill Weldon 0.7500 Positive 2.0000 50.80MM Cutter Dia

ANSI: DXL90-2.0

ISO: DXL90-2.0

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: ABTDXL90-2.0
Delivery date: 3-5 days
$415.00

Features And Benefits

We use all these cutters in production milling 38HRc 4340 AT 1100rpm to 1800rpm and .001 to .002 IPT ALL INCLUDED ANGLES

Products specifications
Attribute name Attribute value
General Product Information
Shipping State California
Package Size 1
Insert Application Finishing, Semi Finishing
Insert Type Positive
Made In USA Yes
Application Dovetail Milling
Insert/Tool Tool
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Insert Size Ic 90
Depth Of Cut Max 0.4900
Cutter Dia 2.0000 50.80MM
Machine Side Connection Type Weldon
Overall Len 3.7500 95.25MM
Flutes/Inserts 3
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Insert Style DI
Extractor T8
Insert Shape/Cutter Pocket Shape Parallelogram
Fasteners & Connectors
Insert Screw DX-3M
