  • AB ToolS DXL80-2.0 Parallelogram 80.0°, Dovetail End Mill Weldon 1.0000 Positive 2.0000 50.80MM Cutter Dia

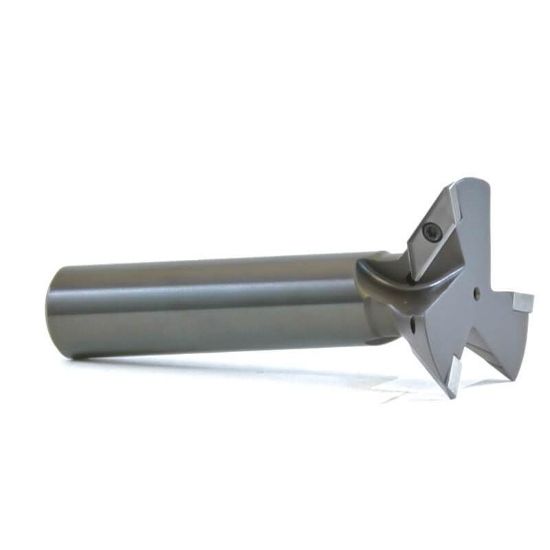

Picture of AB ToolS DXL80-2.0 Parallelogram 80.0°, Dovetail End Mill Weldon 1.0000 Positive 2.0000 50.80MM Cutter Dia

AB ToolS DXL80-2.0 Parallelogram 80.0°, Dovetail End Mill Weldon 1.0000 Positive 2.0000 50.80MM Cutter Dia

ANSI: DXL80-2.0

ISO: DXL80-2.0

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: ABTDXL80-2.0
Delivery date: 3-5 days
$415.00

Features And Benefits

We use all these cutters in production milling 38HRc 4340 AT 1100rpm to 1800rpm and .001 to .002 IPT ALL INCLUDED ANGLES

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Finishing
Made In USA Yes
Package Size 1
Insert Type Positive
Shipping State California
Insert/Tool Tool
Application Dovetail Milling
Dimensional Specifications
Flutes/Inserts 3
Insert Size Ic 90
Cutter Dia 2.0000 50.80MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 3.7500 95.25MM
Machine Side Connection Type Weldon
Depth Of Cut Max 0.5300
Tool Material Steel
Cutting & Machining Properties
Insert Style DI
Extractor T8
Insert Shape/Cutter Pocket Shape Parallelogram
Fasteners & Connectors
Insert Screw DX-3M
