  • AB ToolS DXL60-2.0 Parallelogram 60.0°, Dovetail End Mill Weldon 1.0000 Positive 2.0000 50.80MM Cutter Dia

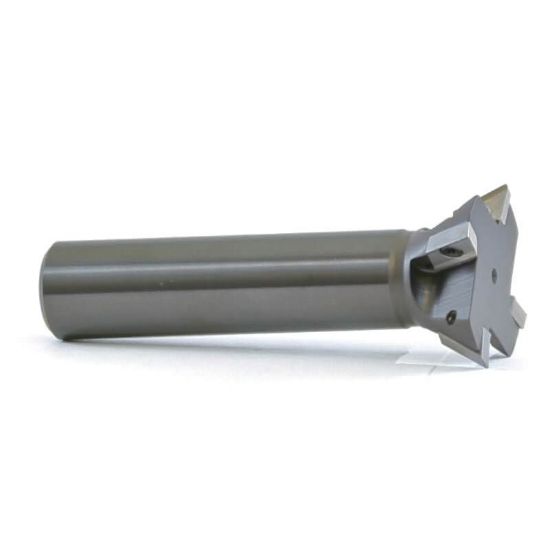

Picture of AB ToolS DXL60-2.0 Parallelogram 60.0°, Dovetail End Mill Weldon 1.0000 Positive 2.0000 50.80MM Cutter Dia

AB ToolS DXL60-2.0 Parallelogram 60.0°, Dovetail End Mill Weldon 1.0000 Positive 2.0000 50.80MM Cutter Dia

ANSI: DXL60-2.0

ISO: DXL60-2.0

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: ABTDXL60-2.0
Delivery date: 3-5 days
$455.00

Features And Benefits

We use all these Dexi-Dovetail cutters in production, milling (38Rc) 4340 at 1100 to 1800 RPM and .001 to .002 IPT. The Dexi-Dovetails are from 10º to 60º included. Proudly made in the USA by AB Tools, Inc.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Shipping State California
Made In USA Yes
Insert/Tool Tool
Application Dovetail Milling
Insert Application Semi Finishing, Finishing
Package Size 1
Dimensional Specifications
Overall Len 3.8800 98.55MM
Tool Material Steel
Flutes/Inserts 4
Depth Of Cut Max 0.6000
Machine Side Connection Type Weldon
Insert Size Ic 60
Shank/Pilot Dia 1.0000 25.40MM
Cutter Dia 2.0000 50.80MM
Machine Side Connection Size 1.0000 25.40MM
Cutting & Machining Properties
Extractor T8
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style DI
Fasteners & Connectors
Insert Screw DX-3M
