  • AB ToolS DXL60-1.62 Parallelogram 60.0°, Dovetail End Mill Weldon 0.7500 Positive 1.6250 41.28MM - 1-5/8 Cutter Dia

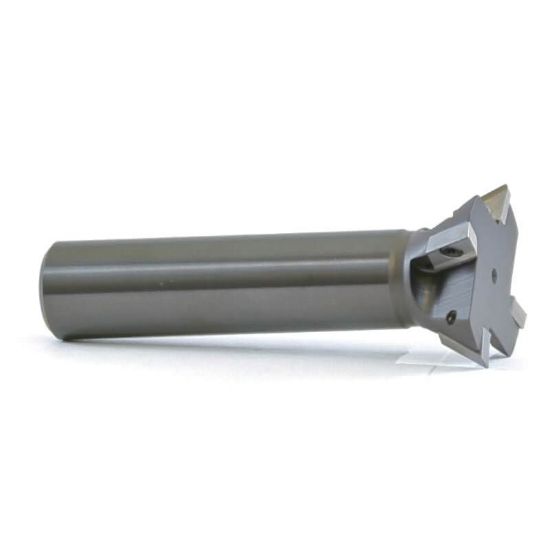

Picture of AB ToolS DXL60-1.62 Parallelogram 60.0°, Dovetail End Mill Weldon 0.7500 Positive 1.6250 41.28MM - 1-5/8 Cutter Dia

AB ToolS DXL60-1.62 Parallelogram 60.0°, Dovetail End Mill Weldon 0.7500 Positive 1.6250 41.28MM - 1-5/8 Cutter Dia

ANSI: DXL60-1.62

ISO: DXL60-1.62

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: ABTDXL60-1.62
Delivery date: 3-5 days
$330.00

Features And Benefits

We use all these Dexi-Dovetail cutters in production, milling (38Rc) 4340 at 1100 to 1800 RPM and .001 to .002 IPT. The Dexi-Dovetails are from 10º to 60º included. Proudly made in the USA by AB Tools, Inc.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State California
Made In USA Yes
Insert Application Finishing, Semi Finishing
Insert Type Positive
Insert/Tool Tool
Application Dovetail Milling
Package Size 1
Dimensional Specifications
Cutter Dia 1.6250 41.28MM - 1-5/8
Tool Material Steel
Overall Len 3.5000 88.90MM
Depth Of Cut Max 0.6000
Machine Side Connection Type Weldon
Insert Size Ic 60
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 3
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Insert Style DI
Extractor T8
Insert Shape/Cutter Pocket Shape Parallelogram
Fasteners & Connectors
Insert Screw DX-3M
