  • AB ToolS DXL30-1.25 Parallelogram 30.0°, Dovetail End Mill Weldon 0.7500 Positive 1.2500 31.75MM - 1-1/4 Cutter Dia

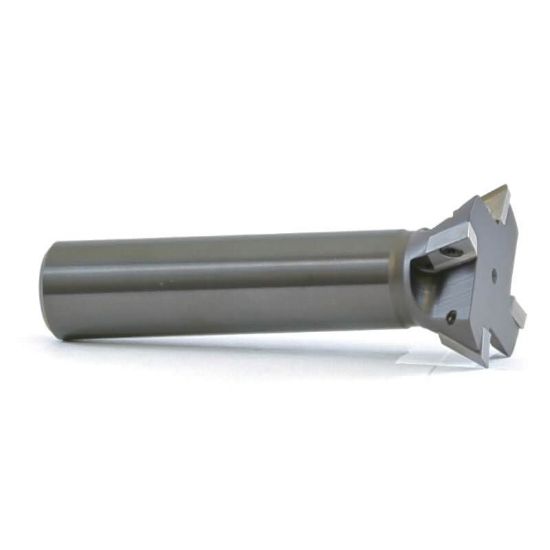

Picture of AB ToolS DXL30-1.25 Parallelogram 30.0°, Dovetail End Mill Weldon 0.7500 Positive 1.2500 31.75MM - 1-1/4 Cutter Dia

AB ToolS DXL30-1.25 Parallelogram 30.0°, Dovetail End Mill Weldon 0.7500 Positive 1.2500 31.75MM - 1-1/4 Cutter Dia

ANSI: DXL30-1.25

ISO: DXL30-1.25

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: ABTDXL30-1.25
Delivery date: 3-5 days
$295.00

Features And Benefits

We use all these Dexi-Dovetail cutters in production, milling (38Rc) 4340 at 1100 to 1800 RPM and .001 to .002 IPT. The Dexi-Dovetails are from 10º to 60º included. Proudly made in the USA by AB Tools, Inc.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Dovetail Milling
Package Size 1
Shipping State California
Made In USA Yes
Insert Application Finishing, Semi Finishing
Insert Type Positive
Dimensional Specifications
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 3
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Insert Size Ic 60
Depth Of Cut Max 0.6400
Overall Len 3.5000 88.90MM
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Weldon
Tool Material Steel
Cutting & Machining Properties
Insert Style DI
Extractor T8
Insert Shape/Cutter Pocket Shape Parallelogram
Fasteners & Connectors
Insert Screw DX-3M
