  • AB ToolS DX60-8 Parallelogram 60.0°, Dovetail End Mill Weldon 1.2500 Positive 1.2500 31.75MM - 1-1/4 Cutter Dia

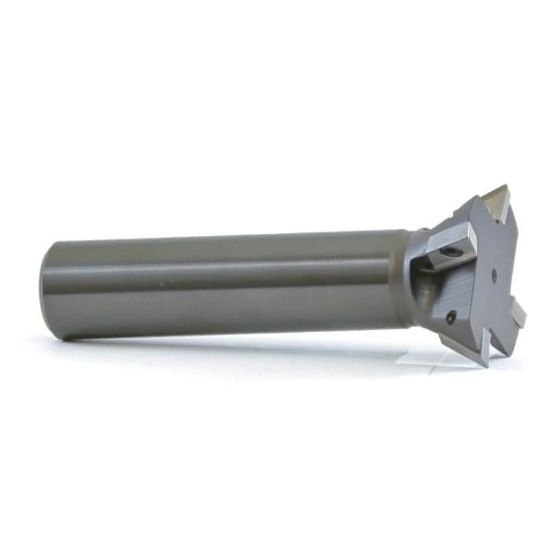

Picture of AB ToolS DX60-8 Parallelogram 60.0°, Dovetail End Mill Weldon 1.2500 Positive 1.2500 31.75MM - 1-1/4 Cutter Dia

AB ToolS DX60-8 Parallelogram 60.0°, Dovetail End Mill Weldon 1.2500 Positive 1.2500 31.75MM - 1-1/4 Cutter Dia

ANSI: DX60-8

ISO: DX60-8

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: ABTDX60-8
Delivery date: 3-5 days
$345.00

Features And Benefits

We use all these Dexi-Dovetail cutters in production, milling (38Rc) 4340 at 1100 to 1800 RPM and .001 to .002 IPT. The Dexi-Dovetails are from 10º to 60º included. Proudly made in the USA by AB Tools, Inc.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Semi Finishing
Insert Type Positive
Package Size 1
Shipping State California
Insert/Tool Tool
Application Dovetail Milling
Made In USA Yes
Dimensional Specifications
Overall Len 8.0000 203.20MM
Machine Side Connection Size 1.2500 31.75MM
Cutter Dia 1.2500 31.75MM - 1-1/4
Tool Material Steel
Insert Size Ic 60
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Depth Of Cut Max 0.3900
Machine Side Connection Type Weldon
Cutting & Machining Properties
Insert Style DI
Extractor T8
Insert Shape/Cutter Pocket Shape Parallelogram
Fasteners & Connectors
Insert Screw DX-3M
