  • AB ToolS DX60-1.38 Parallelogram 60.0°, Dovetail End Mill Weldon 0.6250 Positive 1.3750 34.93MM - 1-3/8 Cutter Dia

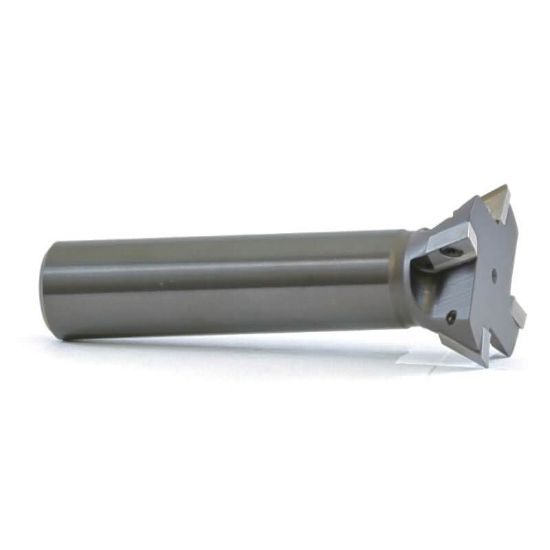

Picture of AB ToolS DX60-1.38 Parallelogram 60.0°, Dovetail End Mill Weldon 0.6250 Positive 1.3750 34.93MM - 1-3/8 Cutter Dia

AB ToolS DX60-1.38 Parallelogram 60.0°, Dovetail End Mill Weldon 0.6250 Positive 1.3750 34.93MM - 1-3/8 Cutter Dia

ANSI: DX60-1.38

ISO: DX60-1.38

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: ABTDX60-1.38
Delivery date: 3-5 days
$260.00

Features And Benefits

We use all these Dexi-Dovetail cutters in production, milling (38Rc) 4340 at 1100 to 1800 RPM and .001 to .002 IPT. The Dexi-Dovetails are from 10º to 60º included. Proudly made in the USA by AB Tools, Inc.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Insert Application Semi Finishing, Finishing
Shipping State California
Application Dovetail Milling
Package Size 1
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Depth Of Cut Max 0.3900
Cutter Dia 1.3750 34.93MM - 1-3/8
Machine Side Connection Type Weldon
Overall Len 3.5000 88.90MM
Insert Size Ic 60
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 3
Tool Material Steel
Machine Side Connection Size 0.6250 15.88MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style DI
Extractor T8
Fasteners & Connectors
Insert Screw DX-3M
