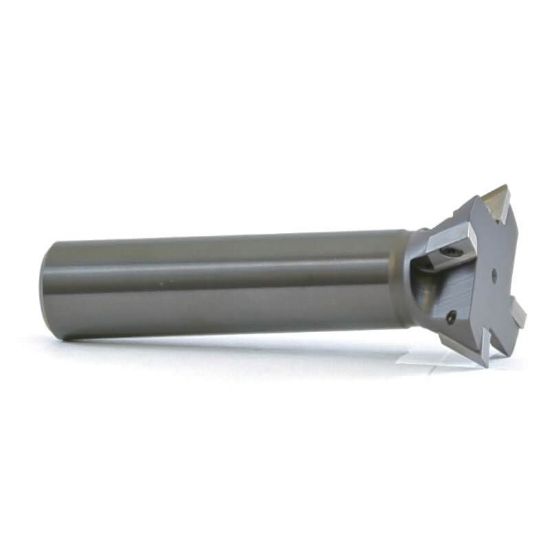

Picture of AB ToolS DX60-125 Parallelogram 60.0°, Dovetail End Mill Weldon 0.5000 Positive 1.2500 31.75MM - 1-1/4 Cutter Dia

AB ToolS DX60-125 Parallelogram 60.0°, Dovetail End Mill Weldon 0.5000 Positive 1.2500 31.75MM - 1-1/4 Cutter Dia

ANSI: DX60-125

ISO: DX60-125

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: ABTDX60-125
Delivery date: 3-5 days
$250.00

Features And Benefits

We use all these Dexi-Dovetail cutters in production, milling (38Rc) 4340 at 1100 to 1800 RPM and .001 to .002 IPT. The Dexi-Dovetails are from 10º to 60º included. Proudly made in the USA by AB Tools, Inc.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State California
Insert Application Finishing, Semi Finishing
Insert Type Positive
Package Size 1
Made In USA Yes
Insert/Tool Tool
Application Dovetail Milling
Dimensional Specifications
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Depth Of Cut Max 0.3900
Cutter Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 60
Flutes/Inserts 3
Machine Side Connection Size 0.5000 12.70MM
Machine Side Connection Type Weldon
Overall Len 3.0000 76.20MM
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style DI
Extractor T8
Fasteners & Connectors
Insert Screw DX-3M
