  • AB ToolS DX45-125 Parallelogram 45.0°, Dovetail End Mill Weldon 0.7500 Positive 1.2500 31.75MM - 1-1/4 Cutter Dia

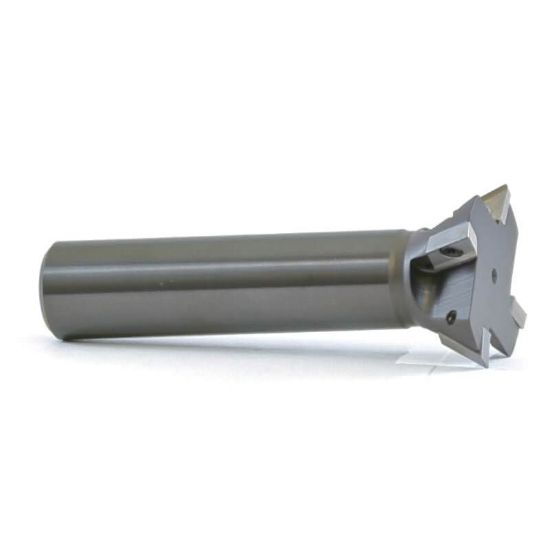

Picture of AB ToolS DX45-125 Parallelogram 45.0°, Dovetail End Mill Weldon 0.7500 Positive 1.2500 31.75MM - 1-1/4 Cutter Dia

AB ToolS DX45-125 Parallelogram 45.0°, Dovetail End Mill Weldon 0.7500 Positive 1.2500 31.75MM - 1-1/4 Cutter Dia

ANSI: DX45-125

ISO: DX45-125

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: ABTDX45-125
Delivery date: 3-5 days
$250.00

Features And Benefits

We use all these Dexi-Dovetail cutters in production, milling (38Rc) 4340 at 1100 to 1800 RPM and .001 to .002 IPT. The Dexi-Dovetails are from 10º to 60º included. Proudly made in the USA by AB Tools, Inc.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Dovetail Milling
Insert Application Semi Finishing, Finishing
Made In USA Yes
Insert Type Positive
Shipping State California
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.4050
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Machine Side Connection Type Weldon
Cutter Dia 1.2500 31.75MM - 1-1/4
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Overall Len 3.2500 82.55MM
Insert Size Ic 60
Flutes/Inserts 3
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style DI
Extractor T8
Fasteners & Connectors
Insert Screw DX-3M
