  • AB ToolS DX30-1 Parallelogram 30.0°, Dovetail End Mill Weldon 0.6250 Positive 1.0000 25.40MM Cutter Dia

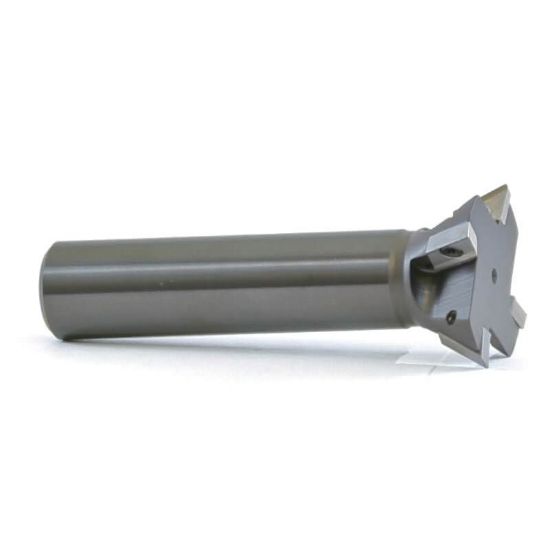

Picture of AB ToolS DX30-1 Parallelogram 30.0°, Dovetail End Mill Weldon 0.6250 Positive 1.0000 25.40MM Cutter Dia

AB ToolS DX30-1 Parallelogram 30.0°, Dovetail End Mill Weldon 0.6250 Positive 1.0000 25.40MM Cutter Dia

ANSI: DX30-1

ISO: DX30-1

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: ABTDX30-1
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

We use all these Dexi-Dovetail cutters in production, milling (38Rc) 4340 at 1100 to 1800 RPM and .001 to .002 IPT. The Dexi-Dovetails are from 10º to 60º included. Proudly made in the USA by AB Tools, Inc.

Products specifications
Attribute name Attribute value
General Product Information
Application Dovetail Milling
Insert Application Semi Finishing, Finishing
Made In USA Yes
Insert/Tool Tool
Package Size 1
Shipping State California
Insert Type Positive
Dimensional Specifications
Insert Size Ic 60
Overall Len 3.5000 88.90MM
Flutes/Inserts 3
Depth Of Cut Max 0.4200
Machine Side Connection Type Weldon
Tool Material Steel
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cutter Dia 1.0000 25.40MM
Machine Side Connection Size 0.6250 15.88MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style DI
Extractor T8
Fasteners & Connectors
Insert Screw DX-3M
