  • AB ToolS DX20-1.25 Parallelogram 20.0°, Dovetail End Mill Weldon 0.7500 Positive 1.2500 31.75MM - 1-1/4 Cutter Dia

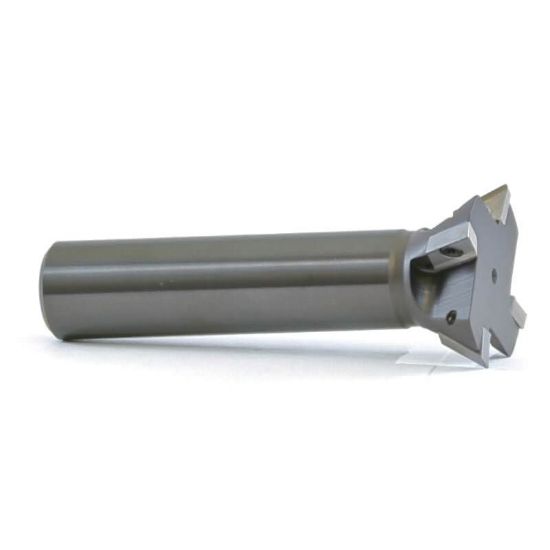

Picture of AB ToolS DX20-1.25 Parallelogram 20.0°, Dovetail End Mill Weldon 0.7500 Positive 1.2500 31.75MM - 1-1/4 Cutter Dia

AB ToolS DX20-1.25 Parallelogram 20.0°, Dovetail End Mill Weldon 0.7500 Positive 1.2500 31.75MM - 1-1/4 Cutter Dia

ANSI: DX20-1.25

ISO: DX20-1.25

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: ABTDX20-1.25
Delivery date: 3-5 days
$250.00

Features And Benefits

We use all these Dexi-Dovetail cutters in production, milling (38Rc) 4340 at 1100 to 1800 RPM and .001 to .002 IPT. The Dexi-Dovetails are from 10º to 60º included. Proudly made in the USA by AB Tools, Inc.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application Finishing, Semi Finishing
Insert Type Positive
Made In USA Yes
Application Dovetail Milling
Insert/Tool Tool
Shipping State California
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Overall Len 3.2500 82.55MM
Insert Size Ic 60
Machine Side Connection Type Weldon
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 3
Depth Of Cut Max 0.4300
Tool Material Steel
Cutter Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style DI
Extractor T8
Fasteners & Connectors
Insert Screw DX-3M
