  • AB ToolS DX20-1 Parallelogram 20.0°, Dovetail End Mill Weldon 0.7500 Positive 1.0000 25.40MM Cutter Dia

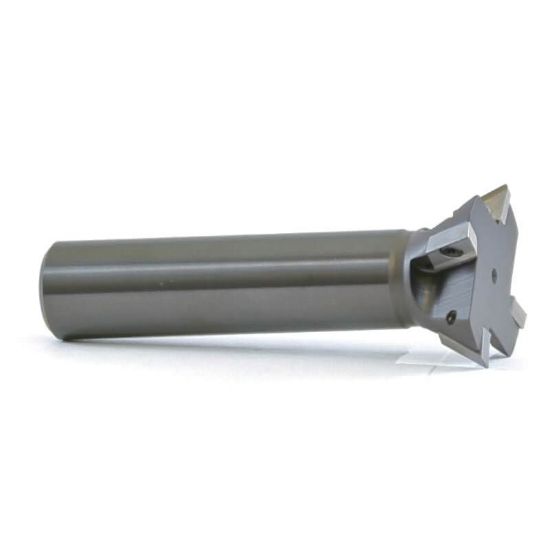

Picture of AB ToolS DX20-1 Parallelogram 20.0°, Dovetail End Mill Weldon 0.7500 Positive 1.0000 25.40MM Cutter Dia

AB ToolS DX20-1 Parallelogram 20.0°, Dovetail End Mill Weldon 0.7500 Positive 1.0000 25.40MM Cutter Dia

ANSI: DX20-1

ISO: DX20-1

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: ABTDX20-1
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

We use all these Dexi-Dovetail cutters in production, milling (38Rc) 4340 at 1100 to 1800 RPM and .001 to .002 IPT. The Dexi-Dovetails are from 10º to 60º included. Proudly made in the USA by AB Tools, Inc.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Dovetail Milling
Insert Application Finishing, Semi Finishing
Insert Type Positive
Made In USA Yes
Package Size 1
Shipping State California
Dimensional Specifications
Depth Of Cut Max 0.4300
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Insert Size Ic 60
Overall Len 3.5000 88.90MM
Flutes/Inserts 3
Machine Side Connection Type Weldon
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutter Dia 1.0000 25.40MM
Cutting & Machining Properties
Insert Style DI
Extractor T8
Insert Shape/Cutter Pocket Shape Parallelogram
Fasteners & Connectors
Insert Screw DX-3M
