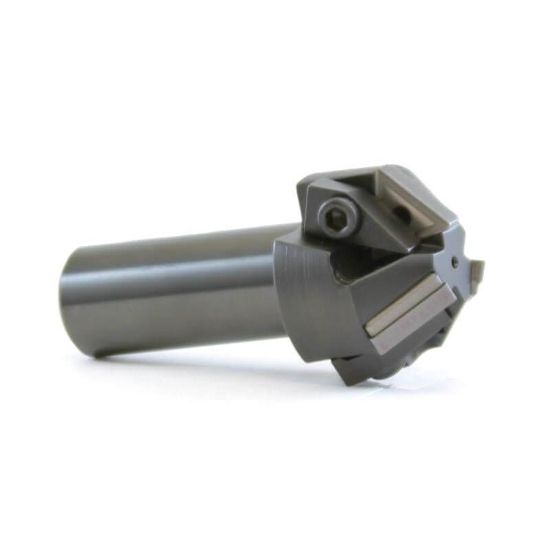

Picture of AB ToolS CHA120-3 Triangle 120.0°, Chamfer Mill End Mill Weldon 1.0000 Negative

AB ToolS CHA120-3 Triangle 120.0°, Chamfer Mill End Mill Weldon 1.0000 Negative

ANSI: CHA120-3

ISO: CHA120-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: ABTCHA120-3
Delivery date: 3-5 days
$475.00

Features And Benefits

Negative chamfer mills for ferrous MATERIALs only. All angles are included

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Chamfering
Made In USA Yes
Insert Application General Purpose
Package Size 1
Insert Type Negative
Shipping State California
Dimensional Specifications
Machine Side Connection Type Weldon
Machine Side Connection Size 1.0000 25.40MM
Cut Dia Max 2.1000 53.34MM
Tool Material Steel
Insert Size Ic 43
Depth Of Cut Max 0.6200
Cut Dia Min 0.7500 19.05MM - 3/4
Length Of Cut 0.2900 7.37MM
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 3.8000 96.52MM
Flutes/Inserts 3
Cutting & Machining Properties
Insert Style TN
Insert Shape/Cutter Pocket Shape Triangle
Seat/Nest SM26
Fasteners & Connectors
Clamp Screw 10-32 SHC
Clamp/Wedge CL5
