  • AB ToolS APD16-150 Parallelogram 150.0°, Back Chamfer , Chamfer ing, End Mill Cylindrical 0.7500 Positive 2.0000 50.80MM Cutter Dia

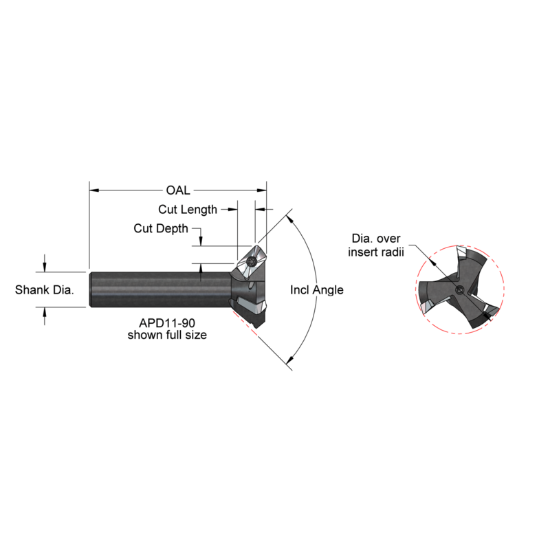

Picture of AB ToolS APD16-150 Parallelogram 150.0°, Back Chamfer , Chamfer ing, End Mill Cylindrical 0.7500 Positive 2.0000 50.80MM Cutter Dia

AB ToolS APD16-150 Parallelogram 150.0°, Back Chamfer , Chamfer ing, End Mill Cylindrical 0.7500 Positive 2.0000 50.80MM Cutter Dia

ANSI: APD16-150

ISO: APD16-150

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: ABTAPD16-150
Delivery date: 3-5 days
$460.00

Features And Benefits

All purpose chamfer mills

Products specifications
Attribute name Attribute value
General Product Information
Application Back Chamfering, Chamfering
Package Size 1
Made In USA Yes
Insert/Tool Tool
Shipping State California
Insert Application General Purpose
Insert Type Positive
Dimensional Specifications
Insert Size Ic 16
Cutter Dia 2.0000 50.80MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Machine Side Connection Type Cylindrical
Depth Of Cut Max 0.5400
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 3
Cut Dia Min 2.0000 50.80MM
Overall Len 3.5000 88.90MM
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AP
Extractor T8
Fasteners & Connectors
Insert Screw 4MM-AP
